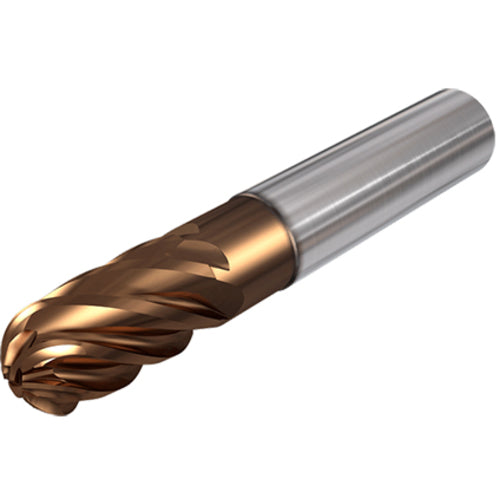

EBI-6 312-1C156VF3 IC608
Item #: EH563406968
Brand: Iscar
Model #: 3406968
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.312″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 0.312″ |
| Application | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting |
| Depth of Cut Maximum (APMX) | 1″ |
| Corner Radius (RE) | 0.156″ |
| Overall Length (OAL) | 3″ |
| Grade | IC608 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90 Degrees |
| Coating | AlTiCrSiN |
| Body Material | Carbide |
| Flute Count (NOF) | 6 |
| Decimal Equivalent | 0.312″ |
| Shank Type | Round |
| Measurement Type | Inch |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1″ |
