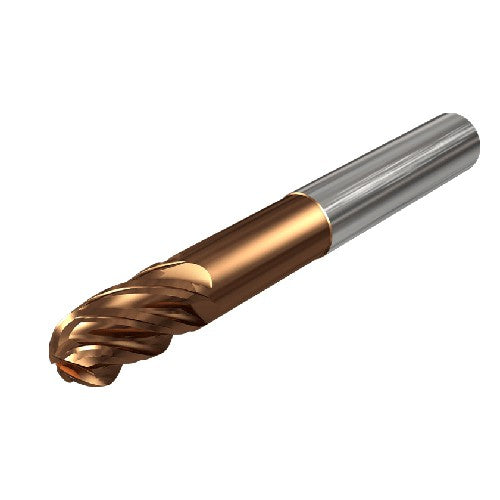

EBI-5 .25-.5WVF2 IC608
Item #: EH563408466
Brand: Iscar
Model #: 3408466
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Grade | IC608 |
| Overall Length (OAL) | 2″ |
| Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiCrSiN |
| Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Shank Type | Weldon |
| Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
