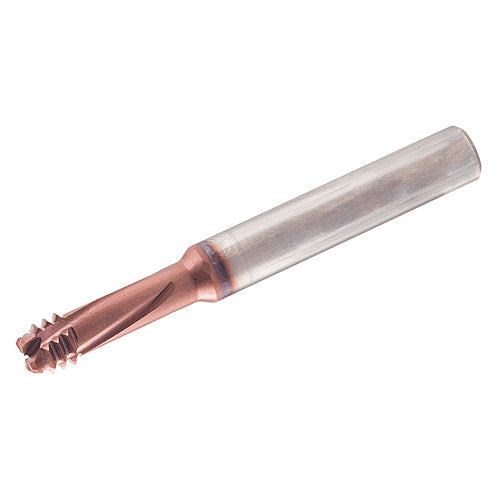

MTECD 06038C14 32UN IC908
Item #: EH565667211
Brand: Iscar
Model #: 5667211
| Product Specifications | |
|---|---|
| Thread Size | 10 |
| Application | | Chamfering | Drilling | Internal Thread Milling | |
| Threads per Inch (TPI) | 32 Threads/" |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Standard | THFT | |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Usable Length (LU) | 0.551″ |
| Cutting Diameter (DC) | 0.15″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 2.283″ |
| Grade | IC908 |
| Flute Count (NOF) | 3 |
| Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | External |
| Corner Chamfer Width (CHW) | 0.3″ |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Thread Form Type (THFT) | UN60 |
