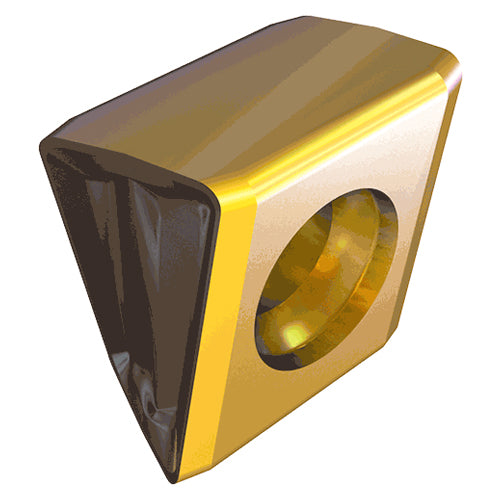

T490 LNMT 1106PNR-PLS IC845
Item #: EH5668452
Brand: Iscar
Model #: 5668452
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | |
| Grade | IC845 |
| Application | | Facing | Milling Inserts | Shouldering | Slotting | |
| Shape | 90° Rectangular |
| Insert Length (INSL) | 0.413″ |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.354″ |
| Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.236″ |
| Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.445″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | AlTiN |
| Body Material | Carbide |
