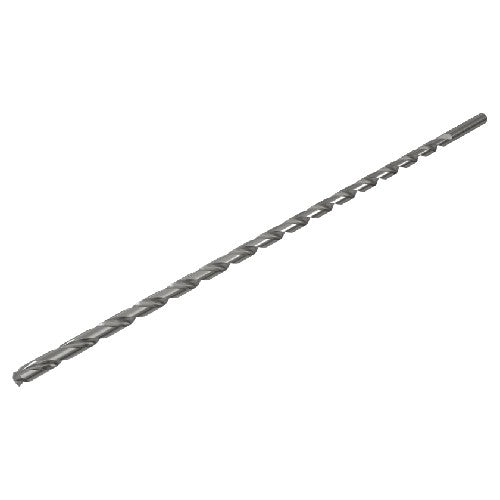

SCD 065-282-080 SXC40 IC908
Item #: EH569573119
Brand: Iscar
Model #: 9573119
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 6.5 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.5 mm |
| Tool Type | Solid Carbide Drill |
| Coating | TiAlN |
| Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Measurement Type | Metric |
| Application | | Drilling | |
| Usable Length (LU) | 282 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Length Chip Flute (LCF) | 290 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 340 mm |
| Point Angle (SIG) | 135 Degrees |
| Flute Count (NOF) | 2 |
| Number of Teeth | 2 |
| Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 45 mm |
| Body Material | Carbide |
| Shank Type | Round |
| Connection Code Machine Side (CCMS) | Cylindrical |
