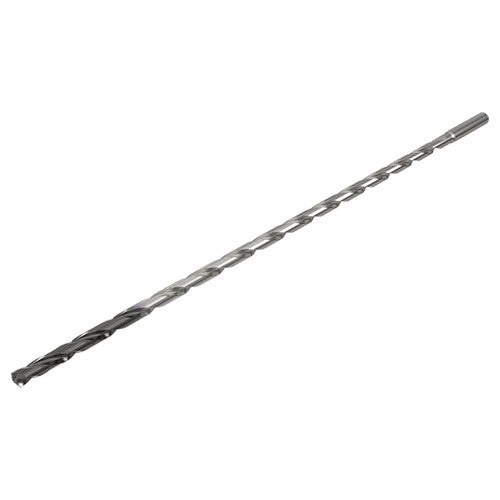

SCD0172-1051-0236SXC50 IC908
Item #: EH569573178
Brand: Iscar
Model #: 9573178
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.172″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.172″ |
| Tool Type | Solid Carbide Drill |
| Decimal Equivalent | 0.172″ |
| Grade | IC908 |
| Coating | TiAlN |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Usable Length (LU) | 10.512″ |
| Application | | Drilling | |
| Length Chip Flute (LCF) | 10.83″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Overall Length (OAL) | 12.598″ |
| Coolant Supply Property (CSP) | Through Hole |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 |
| Body Material | Carbide |
| Shank Length (LS) | 1.58″ |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round |
