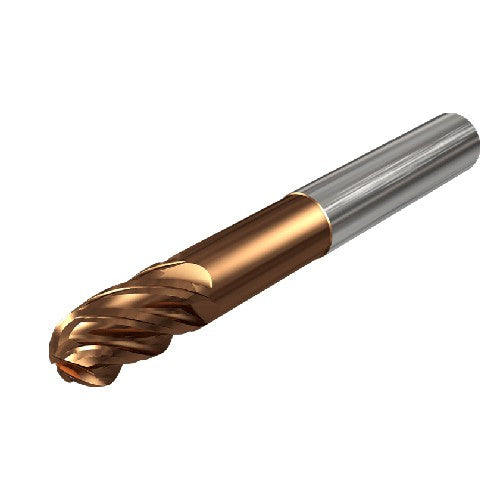

EBI-5 .75-1.25/4.CVF6 V910
Item #: EH569584397
Brand: Iscar
Model #: 3398624
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Corner Radius (RE) | 3/8″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Grade | V910 |
| Overall Length (OAL) | 6″ |
| Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | TiAlCN, THIKNESS 2-4 |
| Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Shank Type | Round |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 4″ |
