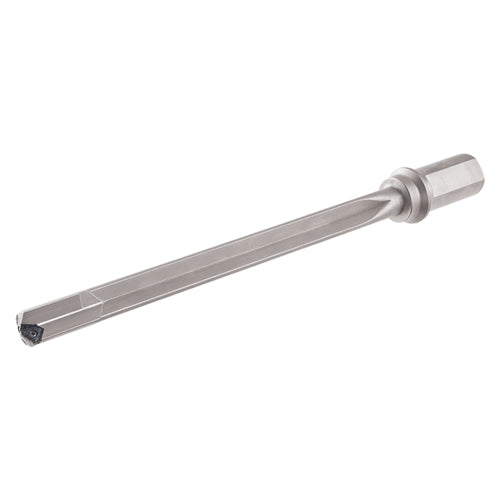

GD-DH 1.062-15D-I1.5-12
Item #: EH574851691
Brand: Iscar
Model #: 4851691
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.062″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 16.54″ |
| Measurement Type | Inch |
| Application | | Gundrill | |
| Length Group | 15D |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Master Insert Identification (MIID) | TOGT 12.. |
| Tool Type | Deep Hole / Gun Drill |
| Body Material | Steel |
| Shank Length (LS) | 2.76″ |
| Decimal Equivalent | 1.062″ |
| Functional Length (LF) | 18.7″ |
