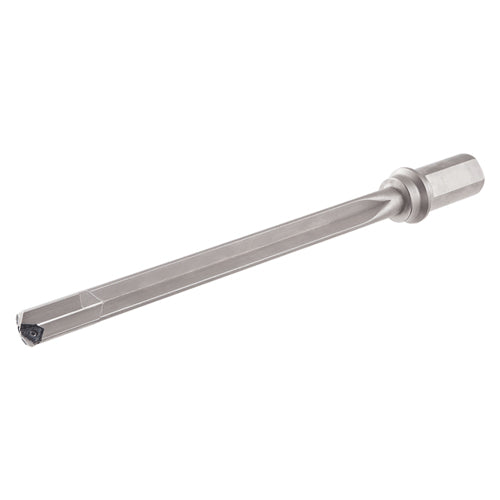

GD-DH 29.00-20D-M40-13
Item #: EH574854359
Brand: Iscar
Model #: 4854359
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 29 mm |
| Functional Length (LF) | 650 mm |
| Usable Length (LU) | 584.57 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Gundrill | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Length Group | 20D |
| Tool Type | Deep Hole / Gun Drill |
| Master Insert Identification (MIID) | TOGT 13.. |
| Shank Length (LS) | 69 mm |
| Body Material | Steel |
