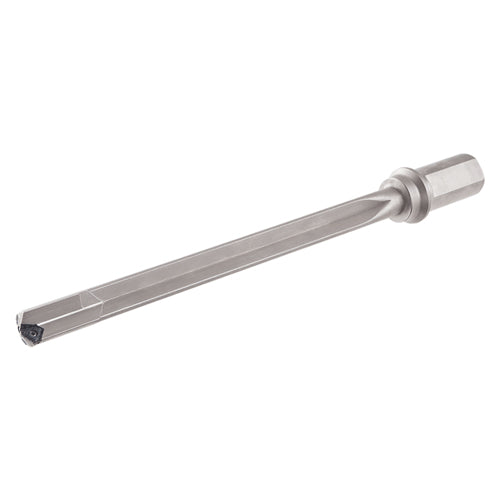

GD-DH 1.25-20D-I1.5-13
Item #: EH574854364
Brand: Iscar
Model #: 4854364
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1-1/4″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 25.376″ |
| Measurement Type | Inch |
| Application | | Gundrill | |
| Length Group | 20D |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Master Insert Identification (MIID) | TOGT 13.. |
| Tool Type | Deep Hole / Gun Drill |
| Body Material | Steel |
| Shank Length (LS) | 2.72″ |
| Decimal Equivalent | 1.25″ |
| Functional Length (LF) | 28.15″ |
