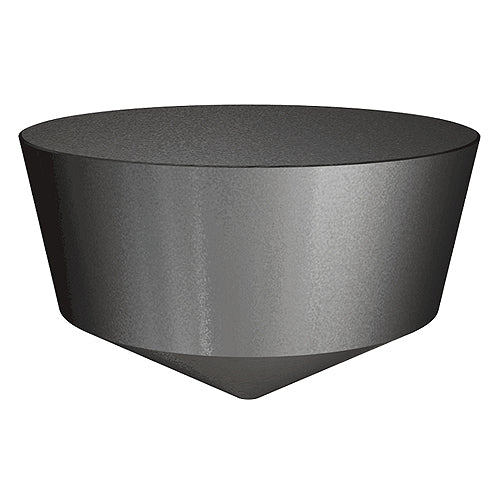

RPGX 35T IS25
Item #: EH576158919
Brand: Iscar
Model #: 6158919
| Product Specifications | |
|---|---|
| Applicable Material | | Hi Temp Alloys | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. Round Face & Turn | Ext. Round Insert Neutral | Insert | |
| Min D.O.C. | 0.02″ |
| Insert Style | RPGX |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 35T |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.313″ |
| Max. Turning Feed (ft(max)) | 0.0177 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | Ceramic |
| Measurement Type | Inch |
| Grade | IS25 |
| Body Material | Carbide |
