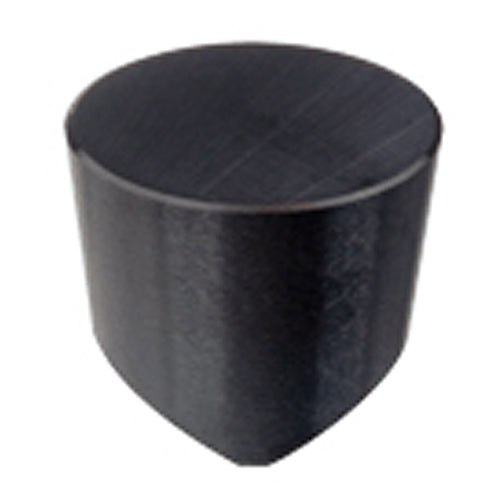

RCGX 45E IS25
Item #: EH576182038
Brand: Iscar
Model #: 6182038
| Product Specifications | |
|---|---|
| Applicable Material | | Hi Temp Alloys | |
| Min D.O.C. | 0.004″ |
| Application | | Ext. Round Face & Turn | Ext. Round Insert Neutral | Insert | |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Style | RCGX |
| Min. Turning Feed (ft(min)) | 0.0027 ″/rev |
| Insert Size | 45 |
| Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.313″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Chip Breaker Type | W |
| Cutting Edge Material | Ceramic |
| Measurement Type | Inch |
| Grade | IS25 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
