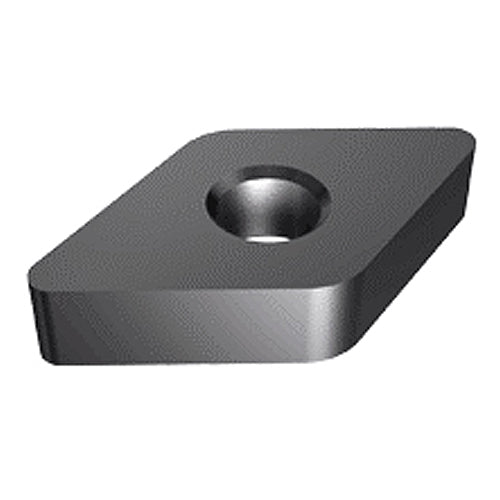

DNGA 431T IN22
Item #: EH5791858
Brand: Iscar
Model #: 5791858
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Hard Materials | |
| Grade | IN22 |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | |
| Tool Type | Turn Ultra hard Inserts |
| Insert Style | DNGA |
| Min D.O.C. | 0.004″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 431 |
| Min. Turning Feed (ft(min)) | 0.0028 ″/rev |
| Cutting Edge Length (L) | 0.61″ |
| Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Ceramic |
| Shape | 55° Rhombic |
| Coating | Uncoated |
| Body Material | Carbide |
