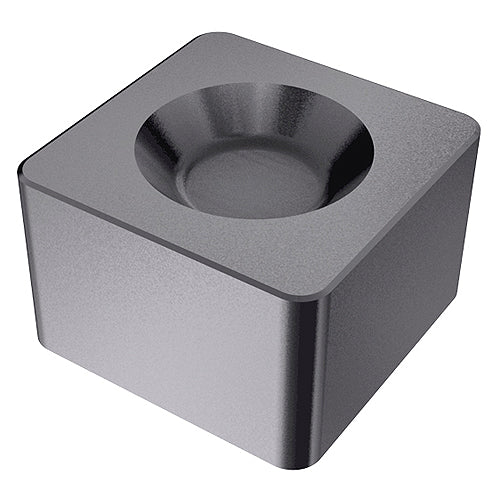

SNGX 454T IS80
Item #: EH5795762
Brand: Iscar
Model #: 5795762
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Grade | IS80 |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Insert | |
| Tool Type | Turn Ultra hard Inserts |
| Insert Style | SNGX |
| Min D.O.C. | 0.004″ |
| Corner Radius (RE) | 0.063″ |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 454 |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 1/2″ |
| Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.313″ |
| Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Ceramic |
| Shape | 90° Square |
| Coating | Al2O3+TiN |
| Body Material | Carbide |
