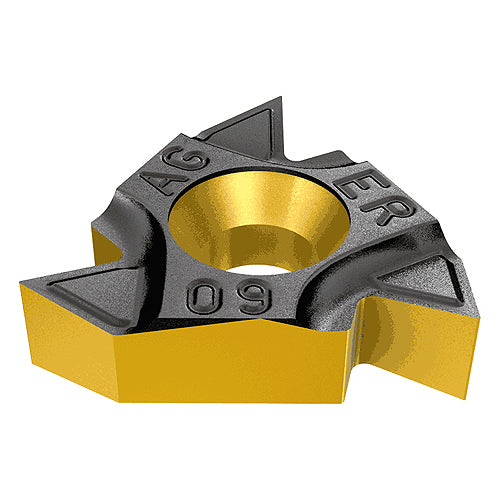

16ERM AG 60 IC50M
Item #: EH5920010
Brand: Iscar
Model #: 5920010
| Product Specifications | |
|---|---|
| Thread Standard | THFT | |
| Threads per Inch Minimum (TPIN) | 8 Threads/" |
| Corner Radius (RE) | 0.0024″ |
| Threads per Inch Maximum (TPIX) | 48 Threads/" |
| Grade | IC50M |
| Thread Pitch Minimum (TPN) | 0.5 mm |
| Coating | Uncoated |
| Thread Pitch Maximum (TPX) | 3 mm |
| Cutting Edge Material | Carbide |
| Tool Type | Threading Regular Inserts |
| Cutting Position | External |
| Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
| Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | |
| Thread Form Type (THFT) | VP60 |
| Shape | 60° Triangle |
