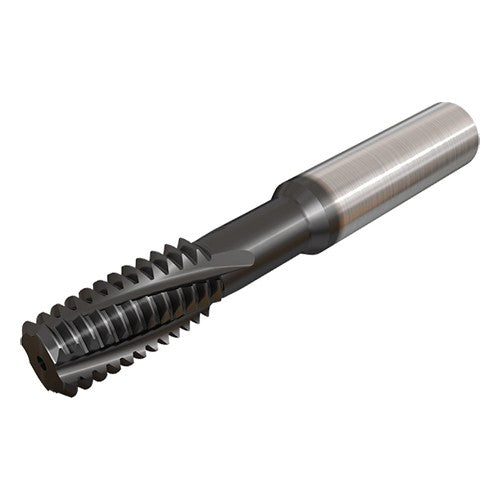

MTECQ 1212D42 12UN IC908
Item #: EH595606849
Brand: Iscar
Model #: 5606849
| Product Specifications | |
|---|---|
| Thread Size | >=0.629 |
| Application | | Internal Thread Milling | |
| Threads per Inch (TPI) | 12 Threads/" |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Standard | THFT | |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.472″ |
| Usable Length (LU) | 1.665″ |
| Cutting Diameter (DC) | 0.472″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 3.307″ |
| Grade | IC908 |
| Flute Count (NOF) | 4 |
| Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 1″ |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Thread Form Type (THFT) | UN60 |
