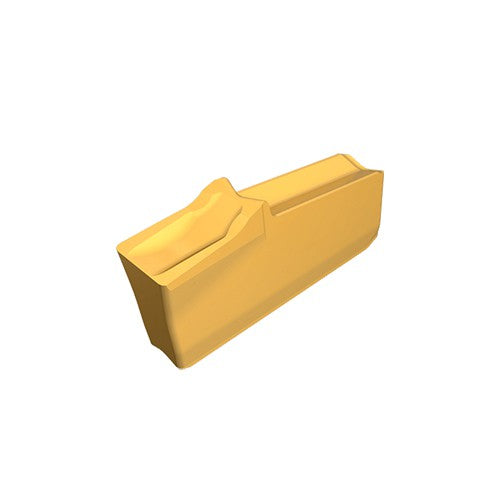

GFF 2R IC635
Item #: EH6000012
Brand: Iscar
Model #: 6000012
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.083″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 1.42″ |
| Corner Radius (RE) | 0.008″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 0.98″ |
| Shape | 90° Rectangular |
| Max. Face Grooving Feed (ffg(max)) | 0.0051 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Face Grooving Feed (ffg(min)) | 0.0012 ″/rev |
| Applicable Material | | Steel | Stainless Steel | |
| Coolant Supply Property (CSP) | External |
| Grade | IC635 |
| Measurement Type | Inch |
| Application | | Face Grooving | Face Grooving Along Shaft | |
| Coating | TiN+TiC+TiN |
| Tool Type | Face Turn-Groove Inserts |
| Body Material | Carbide |
