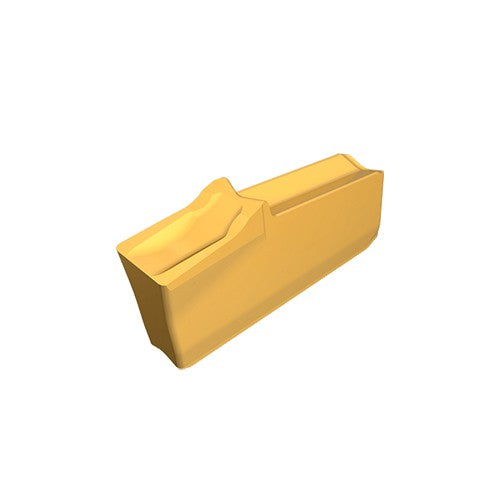

GFF 3R IC20
Item #: EH6000022
Brand: Iscar
Model #: 6000022
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.17″ |
| Corner Radius (RE) | 0.012″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 1.18″ |
| Shape | 90° Rectangular |
| Max. Face Grooving Feed (ffg(max)) | 0.0059 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Face Grooving Feed (ffg(min)) | 0.0012 ″/rev |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Coolant Supply Property (CSP) | External |
| Grade | IC20 |
| Measurement Type | Inch |
| Application | | Face Grooving | Face Grooving Along Shaft | |
| Coating | Uncoated |
| Tool Type | Face Turn-Groove Inserts |
| Body Material | Carbide |
