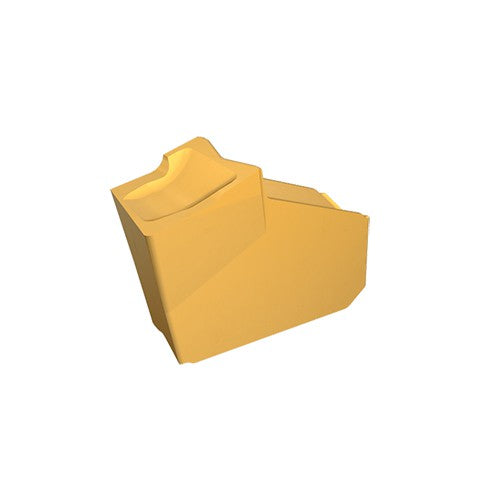

GFR 4 - 4D IC20
Item #: EH6000472
Brand: Iscar
Model #: 6000472
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.161″ |
| Application | | Parting | |
| Corner Radius (RE) | 0.0094″ |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Cutting Edge Material | Carbide |
| Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Coating | Uncoated |
| Min. Grooving Feed (fg(min)) | 0.0031 ″/rev |
| Grade | IC20 |
| Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Carbide |
