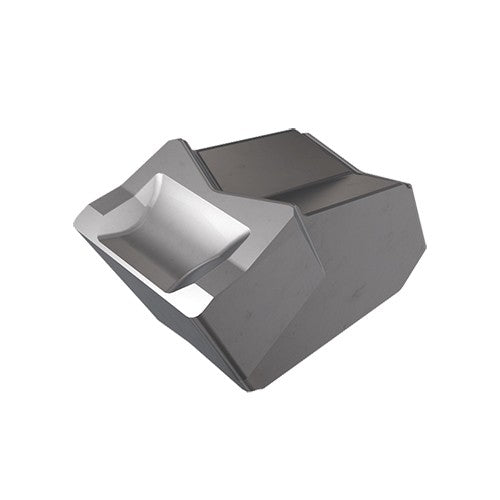

GFN 6 IC328
Item #: EH6002599
Brand: Iscar
Model #: 6002599
| Product Specifications | |
|---|---|
| Corner Radius (RE) | 0.0138″ |
| Application | | Ext. Grooving | Int. Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Cutting Edge Material | Carbide |
| Max. Grooving Feed (fg(max)) | 0.0157 ″/rev |
| Coating | TiCN |
| Min. Grooving Feed (fg(min)) | 0.0059 ″/rev |
| Grade | IC328 |
| Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral |
| Body Material | Carbide |
