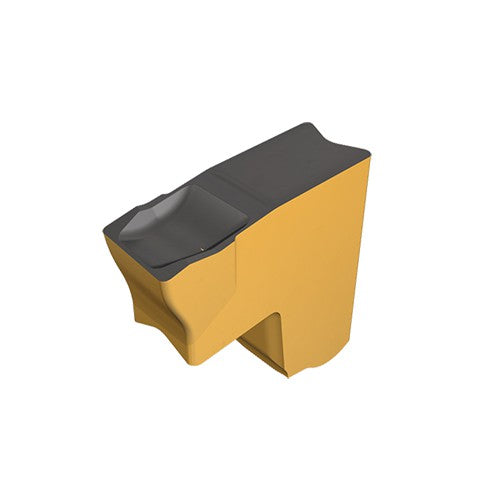

TAG R4C-4D IC908
Item #: EH6003458
Brand: Iscar
Model #: 6003458
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.159″ |
| Application | | Parting | |
| Corner Radius (RE) | 0.0094″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ |
| Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Grooving Feed (fg(min)) | 0.0031 ″/rev |
| Coating | TiAlN |
| Tool Type | Parting & Grooving Inserts |
| Grade | IC908 |
| Measurement Type | Inch |
| Shape | 90° Rectangular |
| Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
