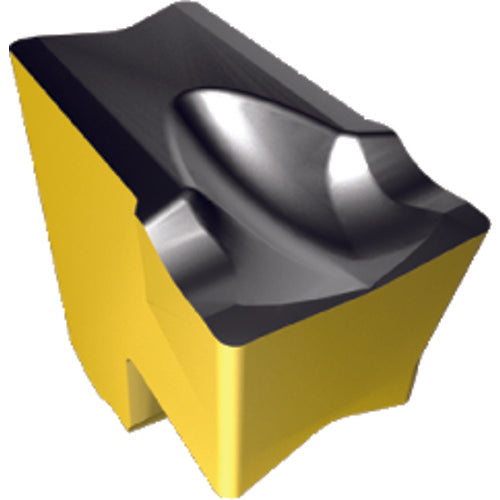

TAG N4J IC808
Item #: EH6003580
Brand: Iscar
Model #: 6003580
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.157″ |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | |
| Corner Radius (RE) | 0.0094″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ |
| Max. Grooving Feed (fg(max)) | 0.0071 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Coating | TiAlN+AlTiN+TiN |
| Insert Rake Angle (GAN) | 5 Degrees |
| Grade | IC808 |
| Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral |
| Body Material | Carbide |
