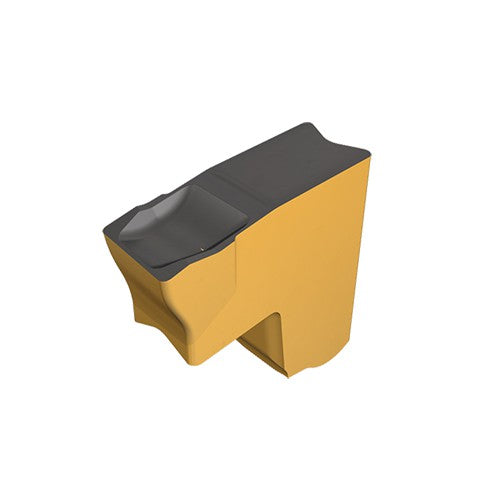

TAG R3C-6D IC808
Item #: EH6011399
Brand: Iscar
Model #: 6011399
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Application | | Parting | |
| Corner Radius (RE) | 0.0079″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ |
| Max. Grooving Feed (fg(max)) | 0.0071 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Grooving Feed (fg(min)) | 0.0031 ″/rev |
| Coating | TiAlN+AlTiN+TiN |
| Tool Type | Parting & Grooving Inserts |
| Grade | IC808 |
| Measurement Type | Inch |
| Shape | 90° Rectangular |
| Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
