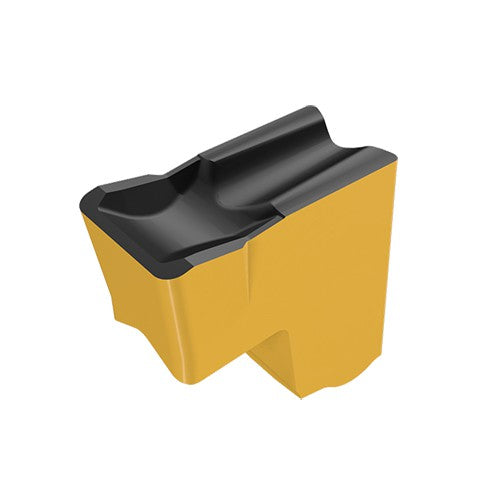

TAG N4HF IC1030
Item #: EH603387288
Brand: Iscar
Model #: 3387288
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.157″ |
| Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0197″ |
| Max. Grooving Feed (fg(max)) | 0.0157 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Grooving Feed (fg(min)) | 0.0118 ″/rev |
| Coating | TiAlN+TiN |
| Chip Breaker Type | HF |
| Grade | IC1030 |
| Measurement Type | Inch |
| Application | | Ext. Grooving | Groove Turn & Parting Inserts | Parting | Side Slotting | Slitting | |
| Body Material | Carbide |
