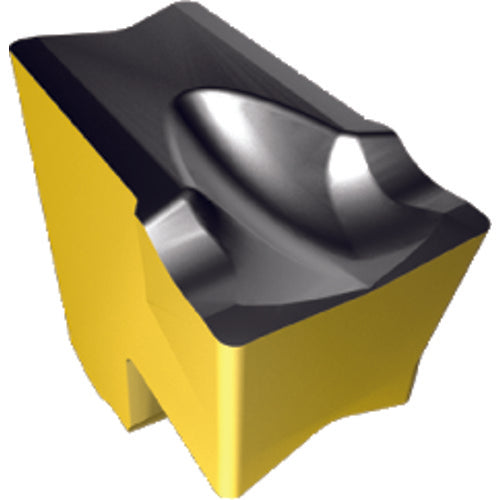

TAG N5J IC1010
Item #: EH603405264
Brand: Iscar
Model #: 3405264
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.199″ |
| Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0098″ |
| Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0016″ |
| Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Cutting Edge Material | Carbide |
| Insert Rake Angle (GAN) | 5 Degrees |
| Coating | TiAlN, TiN |
| Chip Breaker Type | J |
| Grade | IC1010 |
| Tool Type | Parting & Grooving Inserts |
| Cutting Direction (HAND) | Neutral |
| Measurement Type | Inch |
| Application | | Ext. Grooving | Groove Turn & Parting Inserts | Parting | Side Slotting | Slitting | |
| Body Material | Carbide |
