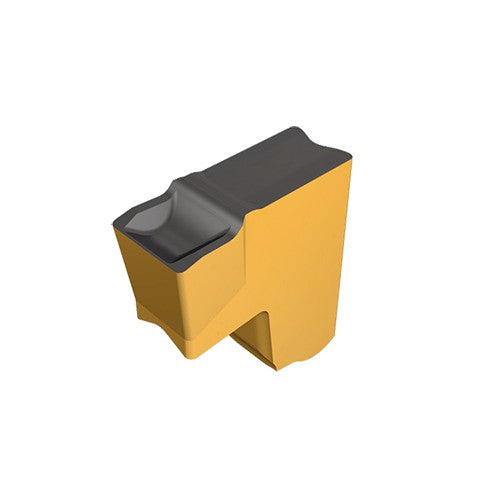

TAG N3MF IC5400
Item #: EH6080678
Brand: Iscar
Model #: 6080678
| Product Specifications | |
|---|---|
| Corner Radius (RE) | 0.0079″ |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ |
| Applicable Material | | Steel | Stainless Steel | |
| Cutting Edge Material | Carbide |
| Max. Grooving Feed (fg(max)) | 0.0071 ″/rev |
| Coating | TiCN+Al2O3+TiN |
| Min. Grooving Feed (fg(min)) | 0.0024 ″/rev |
| Grade | IC5400 |
| Tool Type | Groove-Turn Utility Inserts |
| Shape | 90° Rectangular |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral |
| Body Material | Carbide |
