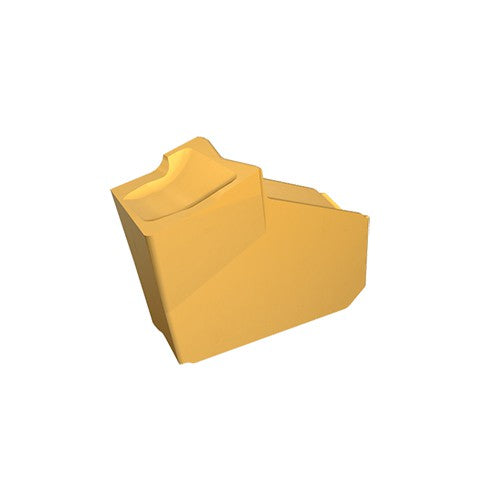

GFR 4 - 8D IC354
Item #: EH6094405
Brand: Iscar
Model #: 6094405
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.161″ |
| Application | | Parting | |
| Corner Radius (RE) | 0.0094″ |
| Applicable Material | | Steel | Stainless Steel | |
| Cutting Edge Material | Carbide |
| Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Coating | TiCN |
| Min. Grooving Feed (fg(min)) | 0.0031 ″/rev |
| Grade | IC354 |
| Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Carbide |
