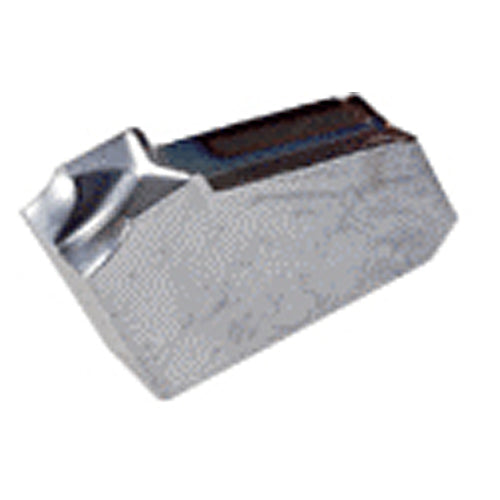

GFL 1.6J - 8D IC328
Item #: EH6096461
Brand: Iscar
Model #: 6096461
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.063″ |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Corner Radius (RE) | 0.0063″ |
| Max. Grooving Feed (fg(max)) | 0.0027 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Coating | TiCN |
| Chip Breaker Type | J |
| Grade | IC328 |
| Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
| Body Material | Carbide |
| Application | | Groove Turn & Parting Inserts | Parting | |
