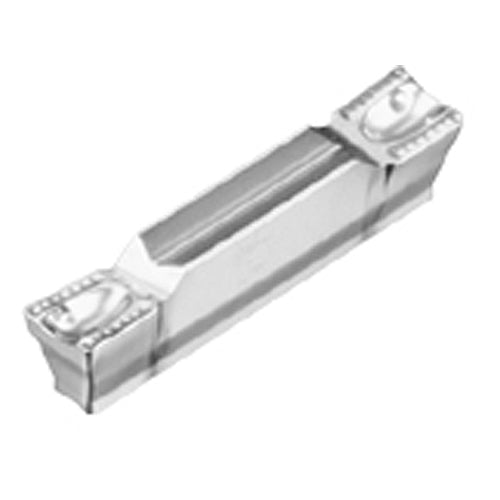

HGPL 4004Y IC08
Item #: EH6200244
Brand: Iscar
Model #: 6200244
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.157″ |
| Min D.O.C. | 0.019″ |
| Insert Length (INSL) | 0.748″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 9.76″ |
| Corner Radius (RE) | 0.016″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 0.77″ |
| Shape | 90° Rectangular |
| Max. Face Grooving Feed (ffg(max)) | 0.0094 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Face Grooving Feed (ffg(min)) | 0.0039 ″/rev |
| Applicable Material | | Non Ferrous Metals | |
| Min. Face Turning Feed (fft(min)) | 0.0063 ″/rev |
| Grade | IC08 |
| Coolant Supply Property (CSP) | External |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | |
| Measurement Type | Inch |
| Tool Type | Parting & Grooving Inserts |
| Coating | Uncoated |
| Depth of Cut Maximum (APMX) | 0.094″ |
| Body Material | Carbide |
