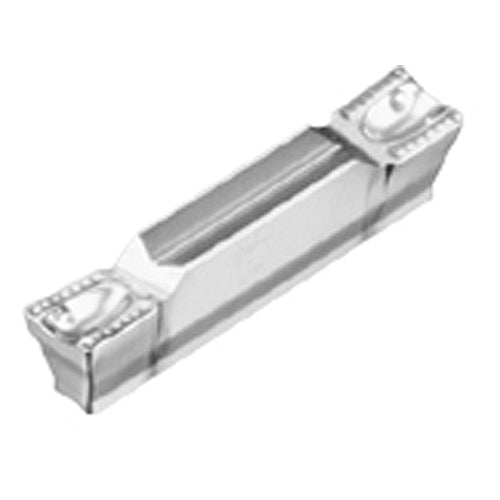

HGPL 5025Y IC808
Item #: EH6200411
Brand: Iscar
Model #: 6200411
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.197″ |
| Min D.O.C. | 0″ |
| Insert Length (INSL) | 0.748″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 9.06″ |
| Corner Radius (RE) | 0.098″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 0.85″ |
| Shape | 90° Rectangular |
| Max. Face Grooving Feed (ffg(max)) | 0.0094 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Face Grooving Feed (ffg(min)) | 0.005 ″/rev |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Min. Face Turning Feed (fft(min)) | 0.008 ″/rev |
| Grade | IC808 |
| Coolant Supply Property (CSP) | External |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | |
| Measurement Type | Inch |
| Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN |
| Depth of Cut Maximum (APMX) | 0.098″ |
| Body Material | Carbide |
