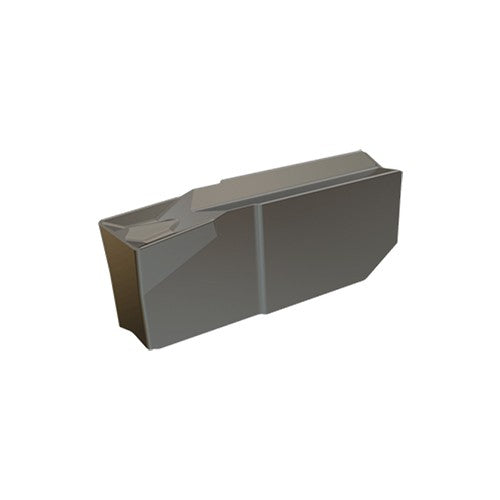

GIM 3 IC54
Item #: EH6400371
Brand: Iscar
Model #: 6400371
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0087″ |
| Application | | Ext. Grooving | Int. Grooving | Parting | Side Slotting | Slitting | T Slotting | |
| Clearance Angle Major (AN) | 7 Degrees |
| Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.602″ |
| Cutting Position | External |
| Feed | 0.0071 inch/rev |
| Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Grade | IC54 |
| Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular |
| Body Material | Carbide |
