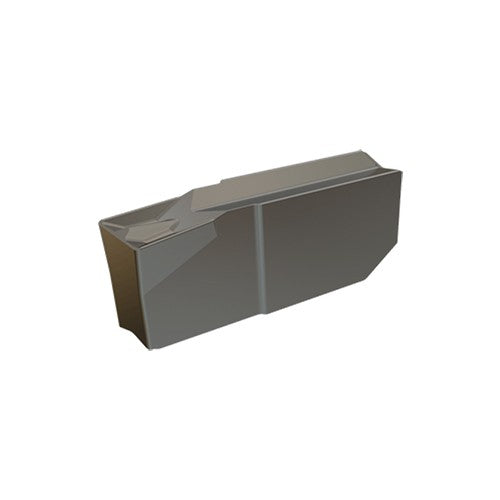

GIM 3.2 IC354
Item #: EH6402260
Brand: Iscar
Model #: 6402260
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.126″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0087″ |
| Application | | Ext. Grooving | Int. Grooving | Parting | Side Slotting | Slitting | T Slotting | |
| Clearance Angle Major (AN) | 7 Degrees |
| Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.602″ |
| Cutting Position | External |
| Feed | 0.0079 inch/rev |
| Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Coating | TiCN |
| Measurement Type | Inch |
| Grade | IC354 |
| Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular |
| Body Material | Carbide |
