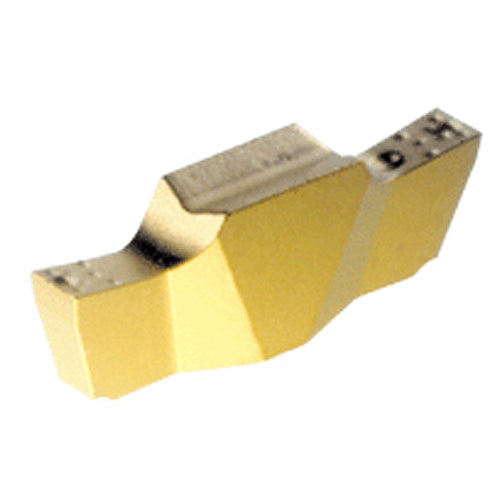

GEPI 1.00-0.10 RX IC528
Item #: EH6403330
Brand: Iscar
Model #: 6403330
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.039″ |
| Shape | 90° Rectangular |
| Corner Radius (RE) | 0.0039″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ |
| Application | | Int. Grooving | |
| Overall Length (OAL) | 0.394″ |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Insert Length (INSL) | 0.394″ |
| Max. Grooving Feed (fg(max)) | 0.0012 ″/rev |
| Cutting Depth Maximum (CDX) | 0.059″ |
| Min. Grooving Feed (fg(min)) | 0.0004 ″/rev |
| Cutting Edge Material | Carbide |
| Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+TiN |
| Measurement Type | Inch |
| Grade | IC528 |
| Body Material | Carbide |
