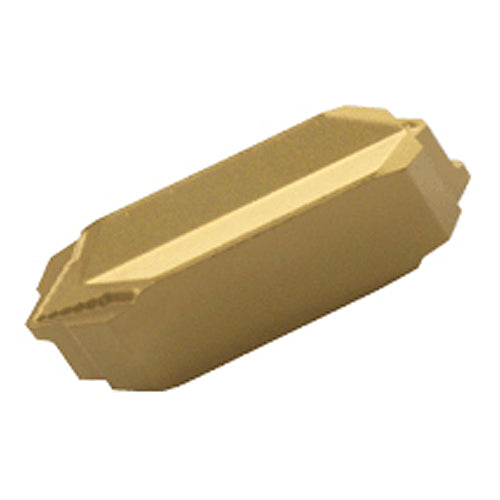

TIP 2P0.8-ISO IC08
Item #: EH6403460
Brand: Iscar
Model #: 6403460
| Product Specifications | |
|---|---|
| Thread Standard | THFT | |
| Application | | Threading (Ext.) Groove Turn T | Treading Inserts | |
| Thread Pitch (TP) | 0.8 mm |
| Applicable Material | | Non Ferrous Metals | |
| Corner Radius (RE) | 0.0047″ |
| Cutting Edge Length (L) | 0.602″ |
| Cutting Width (CW) | 0.094″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC08 |
| Tool Type | Threading Regular Inserts |
| Coating | Uncoated |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Cutting Position | External |
| Thread Form Type (THFT) | M60 |
| Cutting Direction (HAND) | Neutral |
