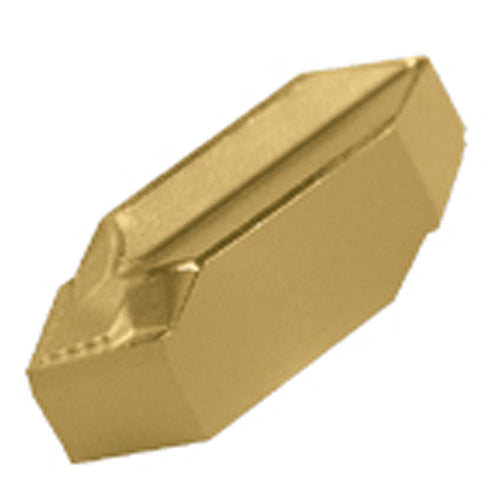

TIPI 5.4MT-0.20 IC908
Item #: EH6403480
Brand: Iscar
Model #: 6403480
| Product Specifications | |
|---|---|
| Thread Standard | THFT | |
| Thread Pitch Maximum (TPX) | 5.1 mm |
| Corner Radius (RE) | 0.008″ |
| Cutting Edge Length (L) | 0.618″ |
| Cutting Width (CW) | 0.213″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC908 |
| Insert to Shank Reference | 3.19 mm |
| Coating | TiAlN |
| Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide |
| Threads per Inch Maximum (TPIX) | 8 Threads/" |
| Cutting Position | Internal |
| Threads per Inch Minimum (TPIN) | 5 Threads/" |
| Cutting Direction (HAND) | Neutral |
| Measurement Type | Inch |
| Application | | Threading (Int.) | Treading Inserts | |
| Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | VP60 |
| Thread Pitch Minimum (TPN) | 3.19 mm |
