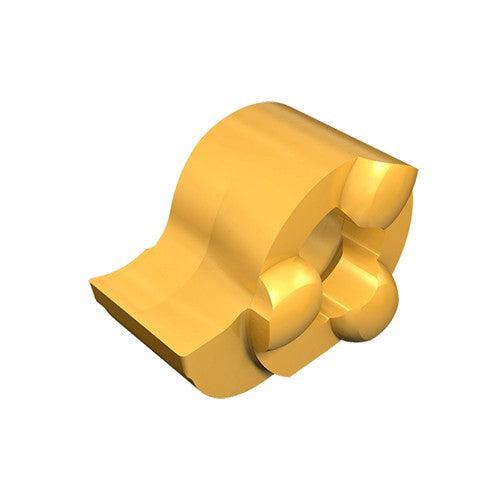

GIQR 11-3.18-0.20 IC528
Item #: EH6403923
Brand: Iscar
Model #: 6403923
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1/8″ |
| Shape | Special |
| Corner Radius (RE) | 0.008″ |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.091″ |
| Application | | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | |
| Insert Length (INSL) | 0.42″ |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Minimum Bore Diameter (DMIN) | 0.433″ |
| Cutting Position | External |
| Feed | 0.002 inch/rev |
| Measurement Type | Inch |
| Coating | TiCN+TiN |
| Tool Type | Groove-Turn Precision Inserts |
| Grade | IC528 |
| Body Material | Carbide |
