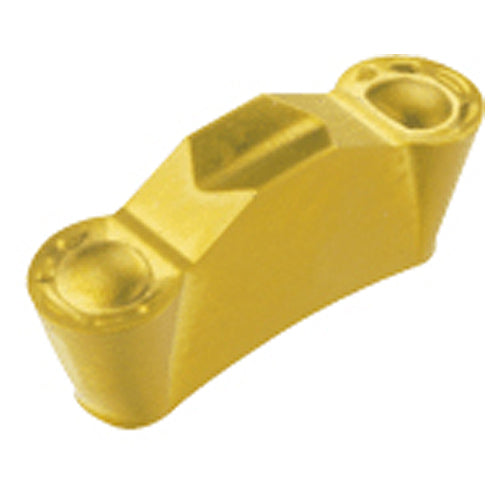

TGMF 315 IC5010
Item #: EH6410574
Brand: Iscar
Model #: 6410574
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Shape | 90° Rectangular |
| Corner Radius (RE) | 0.059″ |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.449″ |
| Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Insert Length (INSL) | 0.531″ |
| Applicable Material | | Cast Iron | |
| Minimum Bore Diameter (DMIN) | 0.807″ |
| Cutting Position | External |
| Feed | 0.0102 inch/rev |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Tool Type | Groove-Turn Utility Inserts |
| Grade | IC5010 |
| Body Material | Carbide |
