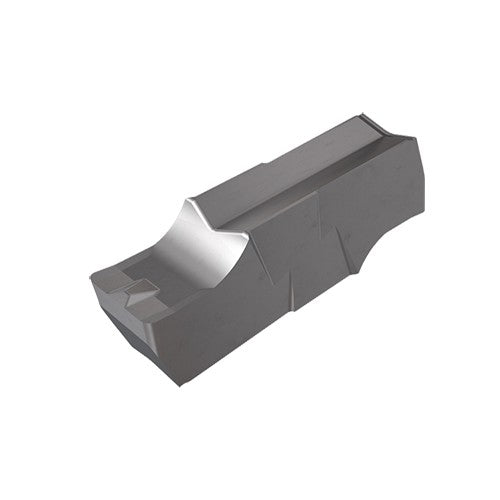

GIFI 4.78-0.55 IC20
Item #: EH6411021
Brand: Iscar
Model #: 6411021
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.188″ |
| Shape | 90° Rectangular |
| Corner Radius (RE) | 0.0216″ |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.61″ |
| Application | | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Clearance Angle Major (AN) | 8 Degrees |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Insert Length (INSL) | 0.618″ |
| Cutting Position | External |
| Minimum Bore Diameter (DMIN) | 0.787″ |
| Measurement Type | Inch |
| Feed | 0.0051 inch/rev |
| Tool Type | Groove-Turn Precision Inserts |
| Coating | Uncoated |
| Body Material | Carbide |
| Grade | IC20 |
