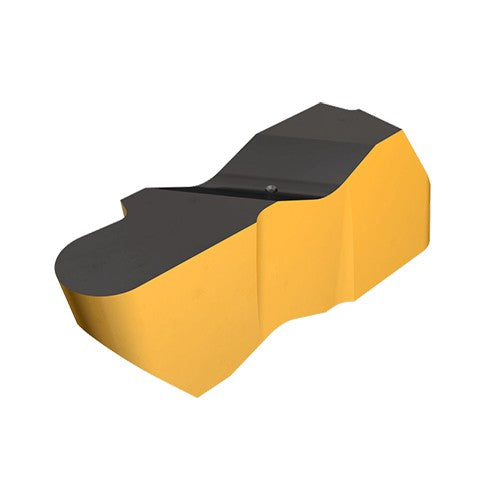

INR2031R IC807
Item #: EH6412070
Brand: Iscar
Model #: 6412070
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.062″ |
| Grade | IC807 |
| Corner Radius (RE) | 0.0307″ |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.11″ |
| Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Insert Thickness (S) | 0.219″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 0.514″ |
| Measurement Type | Inch |
| Insert Rake Angle (GAN) | 0 Degrees |
| Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.002 inch/rev |
| Body Material | Carbide |
| Coating | TiAlN+TiN |
