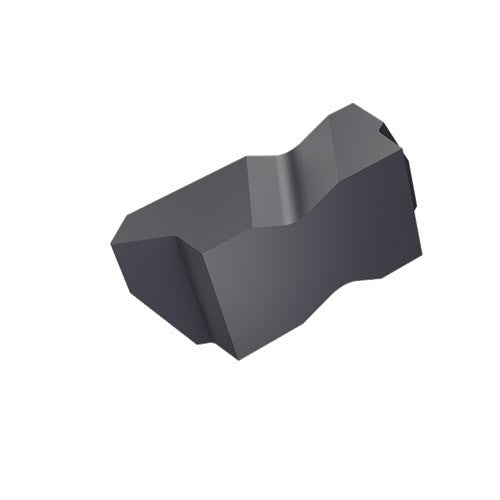

FLTF-3R IC908
Item #: EH642413089
Brand: Iscar
Model #: 2413089
| Product Specifications | |
|---|---|
| Thread Standard | THFT | |
| Thread Pitch Minimum (TPN) | 1 mm |
| Corner Radius (RE) | 0.003″ |
| Thread Pitch Maximum (TPX) | 2.5 mm |
| Insert Thickness (S) | 0.344″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC908 |
| Threads per Inch Maximum (TPIX) | 24 Threads/" |
| Coating | TiAlN |
| Threads per Inch Minimum (TPIN) | 9 Threads/" |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | Treading Inserts | |
| Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | VP60 |
