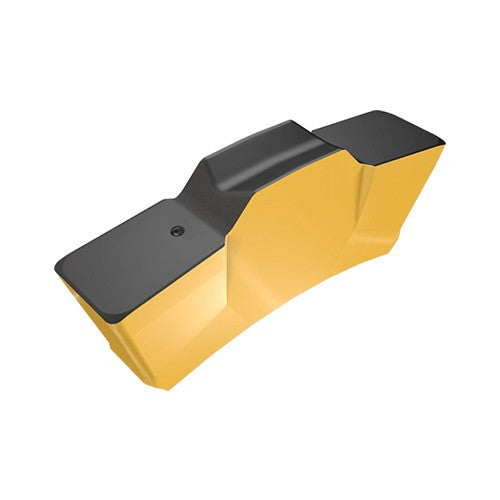

TGMA 304K IC5010
Item #: EH643317745
Brand: Iscar
Model #: 3317745
| Product Specifications | |
|---|---|
| Corner Radius (RE) | 0.0157″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ |
| Applicable Material | | Cast Iron | |
| Overall Length (OAL) | 0.531″ |
| Max. Grooving Feed (fg(max)) | 0.0051 ″/rev |
| Cutting Depth Maximum (CDX) | 0.406″ |
| Min. Grooving Feed (fg(min)) | 0.0027 ″/rev |
| Cutting Edge Material | Carbide |
| Insert Rake Angle (GAN) | 15 Degrees |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | IC5010 |
| Body Material | Carbide |
