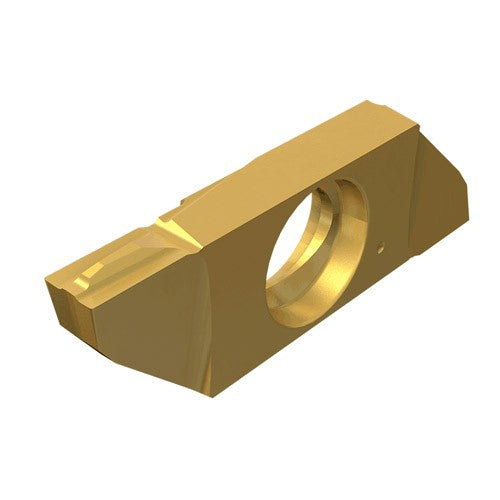

SCIR 22-AD08-24K8 IC1007
Item #: EH643333350
Brand: Iscar
Model #: 3333350
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.094″ |
| Coating | TiAlN |
| Corner Radius (RE) | 0.0031″ |
| Grade | IC1007 |
| Cutting Depth Maximum (CDX) | 0.217″ |
| Cutting Edge Material | Carbide |
| Clearance Angle Major (AN) | 7 Degrees |
| Application | | Ext. Grooving & Turning | Ext. Turning | |
| Insert Thickness (S) | 0.276″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 0.866″ |
| Measurement Type | Inch |
| Insert Rake Angle (GAN) | 8 Degrees |
| Body Material | Carbide |
