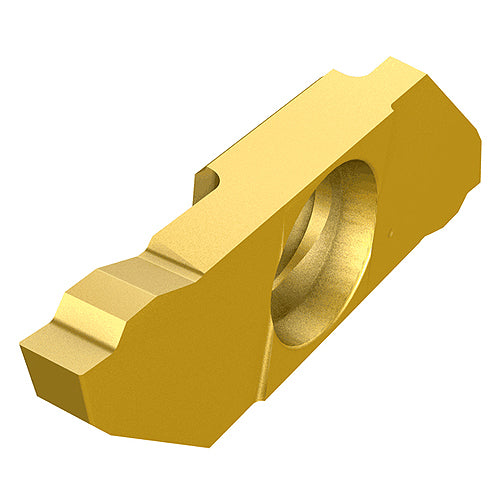

SCIL 22-050N-00 IC1007
Item #: EH643333921
Brand: Iscar
Model #: 3333921
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.02″ |
| Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0″ |
| Application | | Ext. Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Thickness (S) | 0.276″ |
| Max. Grooving Feed (fg(max)) | 0.0016 ″/rev |
| Insert Length (INSL) | 0.866″ |
| Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Depth Maximum (CDX) | 0.071″ |
| Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Edge Material | Carbide |
| Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | IC1007 |
| Body Material | Carbide |
