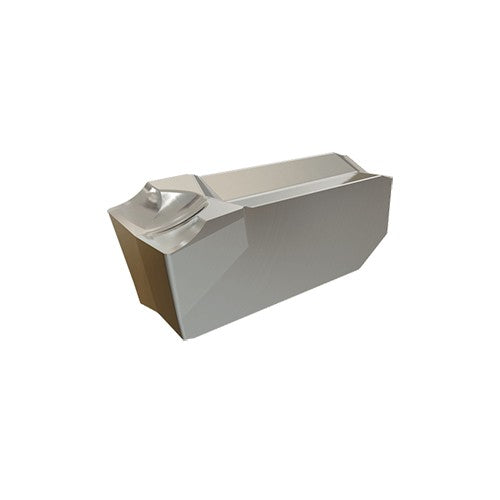

GIM 2.2J IC830
Item #: EH643345109
Brand: Iscar
Model #: 3345109
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.087″ |
| Application | | Ext. Grooving | Groove Turn & Parting Inserts | Int. Grooving | Parting | Side Slotting | Slitting | T Slotting | |
| Corner Radius (RE) | 0.0067″ |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Clearance Angle Major (AN) | 7 Degrees |
| Chip Breaker Type | J |
| Insert Length (INSL) | 0.602″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Coating | AlTiN+TiN |
| Measurement Type | Inch |
| Grade | IC830 |
| Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
