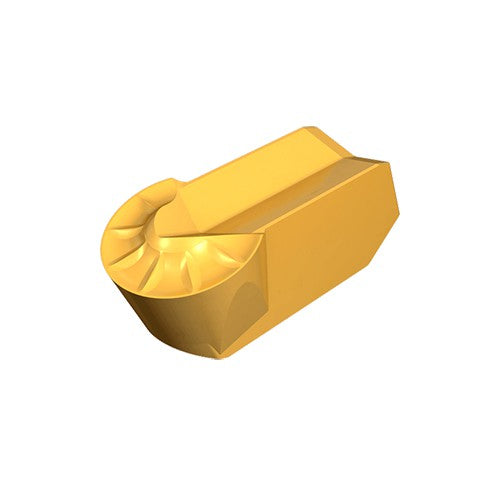

GIMY 630 IC804
Item #: EH643352777
Brand: Iscar
Model #: 3352777
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.236″ |
| Application | | Ext. Grooving | Ext. Profiling | Face Grooving Along Shaft | Groove Turn & Parting Inserts | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 0.118″ |
| Applicable Material | | Hi Temp Alloys | |
| Clearance Angle Major (AN) | 7 Degrees |
| Chip Breaker Type | Y |
| Insert Length (INSL) | 0.602″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Minimum Bore Diameter (DMIN) | 2.756″ |
| Measurement Type | Inch |
| Coating | AlTiN "SUMO TEC" |
| Tool Type | Groove-Turn Utility Inserts |
| Grade | IC804 |
| Body Material | Carbide |
| Cutting Edge Material | Carbide |
