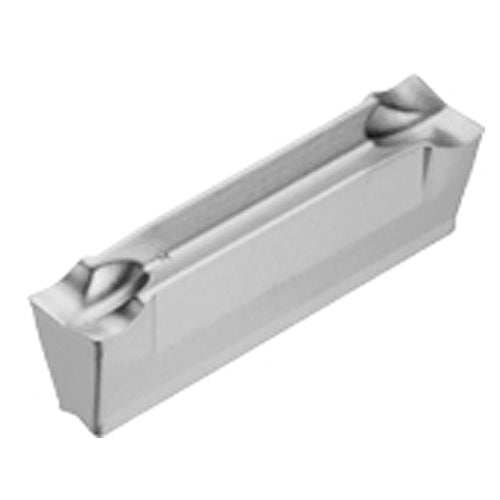

DGN 5003J IC808
Item #: EH646004478
Brand: Iscar
Model #: 6004478
| Product Specifications | |
|---|---|
| Corner Radius (RE) | 0.0118″ |
| Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Overall Length (OAL) | 0.748″ |
| Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Coating | TiAlN+AlTiN+TiN |
| Tool Type | Parting & Grooving Inserts |
| Grade | IC808 |
| Measurement Type | Inch |
| Shape | 90° Rectangular |
| Body Material | Carbide |
| Cutting Direction (HAND) | Neutral |
