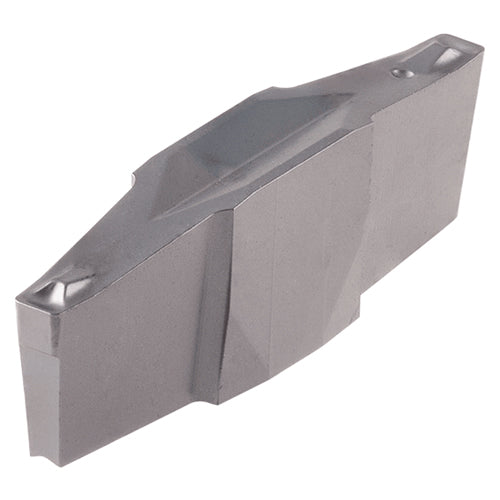

GDP 1.20-0.30-4768V2Q IC308
Item #: EH6491677
Brand: Iscar
Model #: 6491677
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.047″ |
| Application | | Ext. Grooving | |
| Corner Radius (RE) | 0.0118″ |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Corner Radius Tolerance (+/-) (RETOL) | 0″ |
| Max. Grooving Feed (fg(max)) | 0.0071 ″/rev |
| Overall Length (OAL) | 0.984″ |
| Min. Grooving Feed (fg(min)) | 0.0047 ″/rev |
| Cutting Depth Maximum (CDX) | 0.256″ |
| Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN |
| Body Material | Carbide |
| Grade | IC308 |
