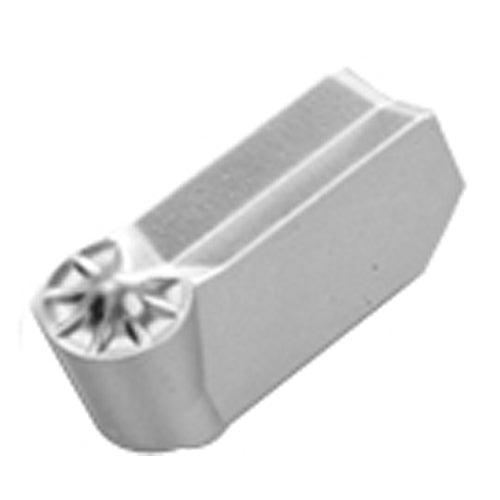

GIPY 5.00-2.50 IC20
Item #: EH6496205
Brand: Iscar
Model #: 6496205
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.197″ |
| Shape | 90° Rectangular |
| Corner Radius (RE) | 0.098″ |
| Cutting Edge Material | Carbide |
| Clearance Angle Major (AN) | 7 Degrees |
| Application | | Ext. Grooving | Ext. Profiling | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Insert Length (INSL) | 0.602″ |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Minimum Bore Diameter (DMIN) | 2.756″ |
| Cutting Position | External |
| Feed | 0.0181 inch/rev |
| Measurement Type | Inch |
| Coating | Uncoated |
| Tool Type | Groove-Turn Precision Inserts |
| Grade | IC20 |
| Body Material | Carbide |
