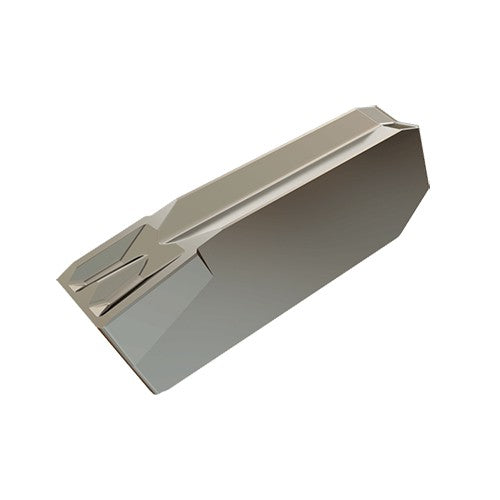

GIM 3-8RA IC328
Item #: EH6496738
Brand: Iscar
Model #: 6496738
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0098″ |
| Application | | Parting | Slitting | |
| Overall Length (OAL) | 0.602″ |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Insert Length (INSL) | 0.602″ |
| Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Cutting Edge Material | Carbide |
| Min. Grooving Feed (fg(min)) | 0.0031 ″/rev |
| Coating | TiCN |
| Tool Type | Parting & Grooving Inserts |
| Grade | IC328 |
| Measurement Type | Inch |
| Shape | 90° Rectangular |
| Body Material | Carbide |
