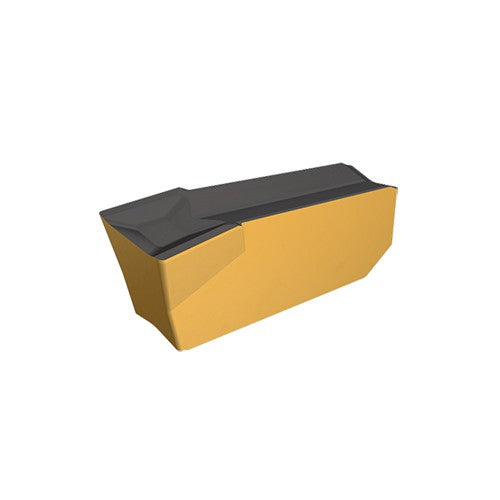

GIMF 406 IC907
Item #: EH6496970
Brand: Iscar
Model #: 6496970
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.157″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.024″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | |
| Clearance Angle Major (AN) | 7 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Insert Length (INSL) | 0.602″ |
| Cutting Position | External |
| Minimum Bore Diameter (DMIN) | 2.756″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Feed | 0.0098 inch/rev |
| Measurement Type | Inch |
| Coating | TiAlN+TiN |
| Tool Type | Groove-Turn Utility Inserts |
| Grade | IC907 |
| Body Material | Carbide |
| Shape | 90° Rectangular |
